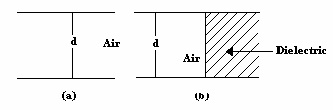

Q1.A parallel plate air filled capacitor shown in Fig. (a) has a capacitance of 2 μF. When it is half filled with a dielectric of dielectric constant k= 3 as shown in Fig. (b), its capacitance becomes
Answer : Option BExplaination / Solution: The capacitance of the first capacitor C=ε0Ad=2μFThe second capacitor is considered to be made of two capacitors C1( air filled) and C2( dielectric) connected in parallel.
Q2.A 2μF capacitor C1 is charged to a voltage 100 V and a 4 μF capacitor C2 is charged to a voltage 50 V. The capacitors are then connected in parallel. What is the loss of energy due to parallel connection?
Answer : Option AExplaination / Solution: Explanation here:(A) Initial energy
The common potential after they are connected in parallel
Q3.A parallel plate capacitor of plate area A has a charge Q. The force on each plate of the capacitor is
Answer : Option DExplaination / Solution: Force between two plates of the capacitor F=uAThe energy density u=12ε0E2The electric field E=σε0and the charge density σ=qA
Q4.A capacitor of capacitance C is fully charged by a 200 V supply. It is then discharged through a small coil of resistance wire embedded in a thermally insulated block of specific heat 2.5×102Jkg−1K−1and of mass 0.1 kg. If the temperature of the block rises by 0.4 K, what is the value of C?
Answer : Option BExplaination / Solution: Energy stored in the capacitor U=12CV2=12(200)2C=2×104C JThis is released as heat when the capacitor discharges through the metal block. The quantity of heat = mass ×s p.heat× rise in temperature.
Q5.The capacitance of a parallel plate capacitor is 5 μF. When a glass slab of thickness equal to the separation between the plates is introduced between the plates, the potential difference reduces to 1/8 of the original value. The dielectric constant of glass is
Answer : Option AExplaination / Solution:
When a dielectric of constant K is introduced between the plates of a capacitor, the potential V reduces to V/K. Therefore K=8
Q6.The dielectric constant K of an insulator can be
Answer : Option DExplaination / Solution: Dielectric constant of air is 1. All dielectrics generally have a value of the dielectric constant greater than1.K=FFmwhere Fm is the force between two charged particles in a medium of dielectric constant K and F is the force between the two charges when placed in air.The force between two charges is greatest in air or vacuum and it decreases when any medium is placed between the charges. K cannot have negative, fractional or zero values.
